CASA R5-H
- Classe de rendement énergétique Écoconception A
- Plage de débit d’air 108 - 439 m³/h
- Rendement thermique atteignant 86% (EN 13141-7)
- Fonction humidité à la demande en standard
- By-pass estival automatique et refroidissement passif
- Ventilation en continu grâce à la protection antigel
- Batteries externes de chauffage et de refroidissement  en option
- Peut se brancher sur un système de gestion technique de bâtiment (E/S / Modbus)
- Pour installation dans le grenier d’une maison
- Système de régulation CASA Smart

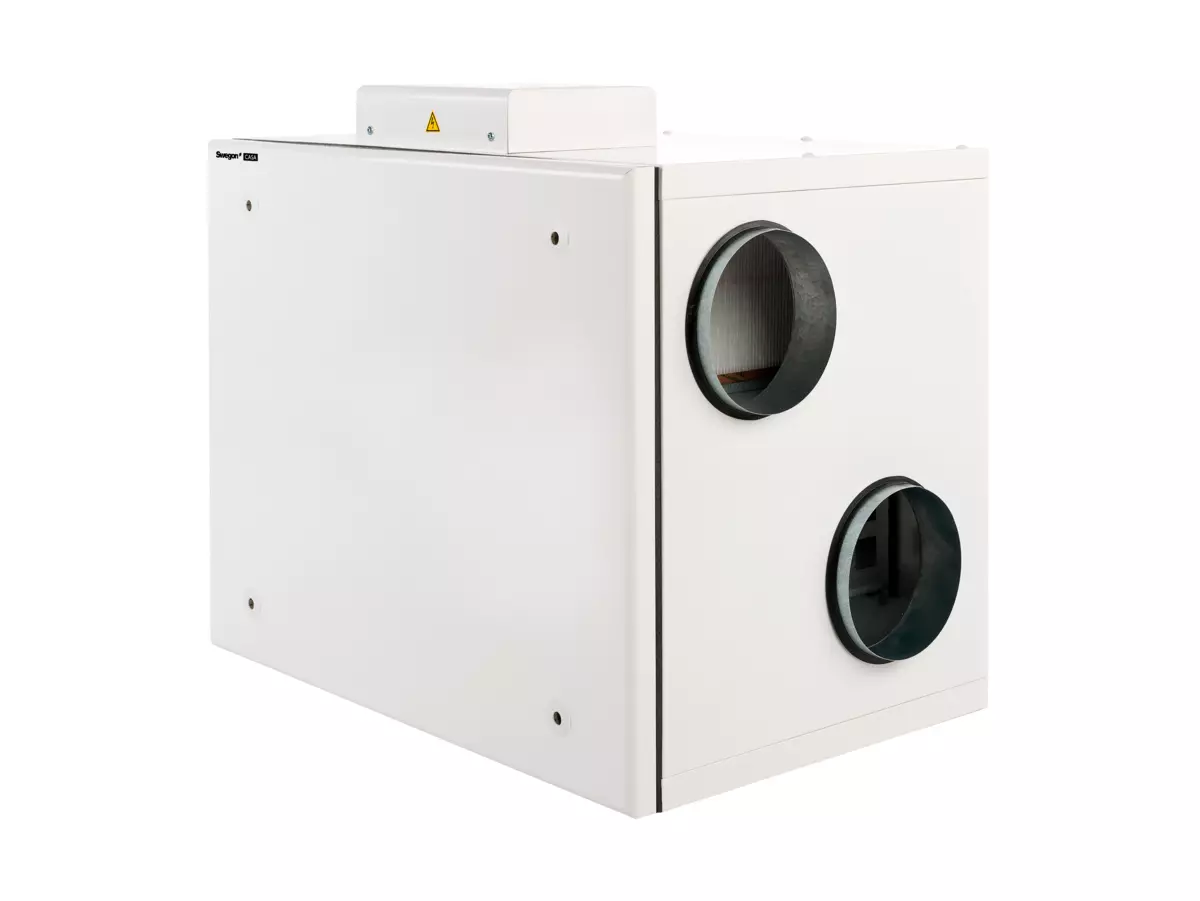

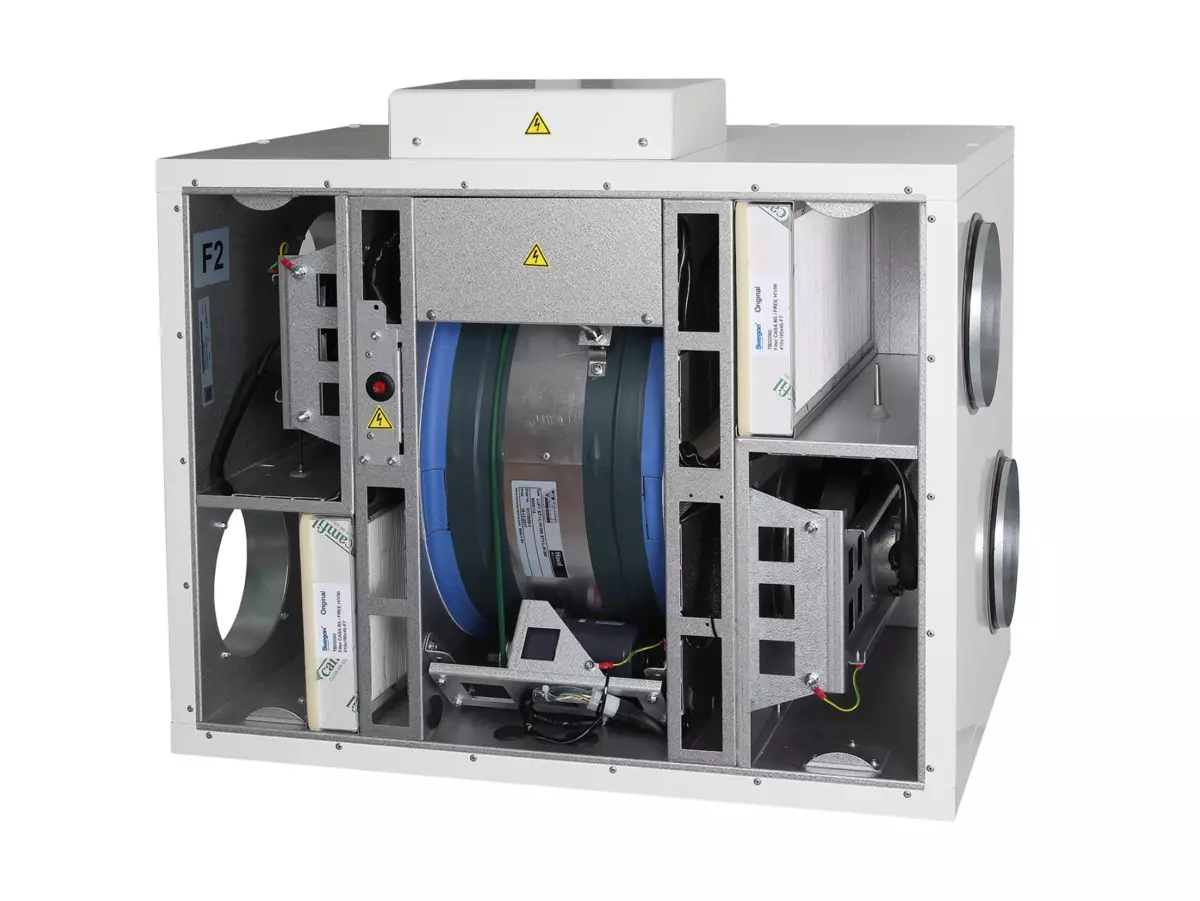

Residential air handling unit (702 x 614 x 479 mm, Ø160 mm) with rotary heat exchanger for houses, small offices, etc.

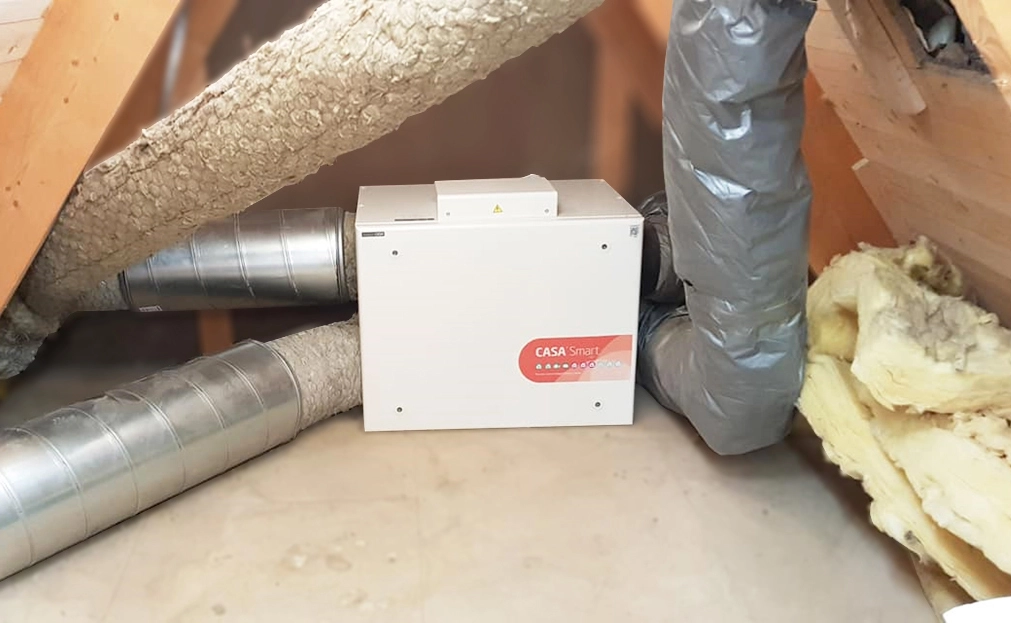

R5-H is suited for attic installation with horizontal duct connections and design fitted for transport up through the ceiling hatch.

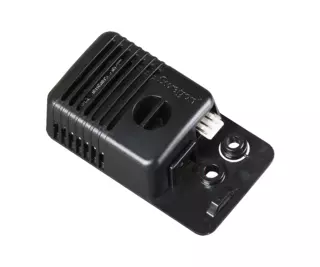

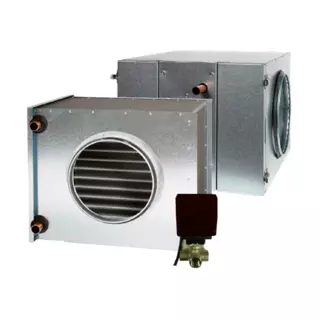

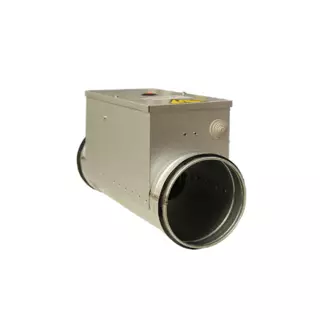

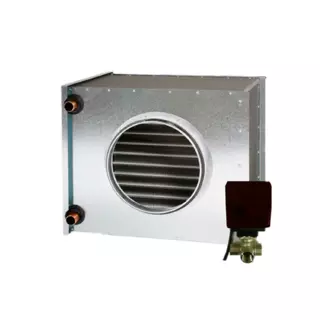

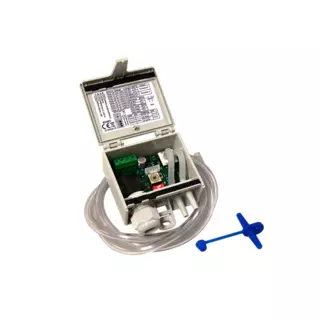

The ventilation unit has intelligent demand-controlled humidity function (RH) as standard. CO2 and VOC automation are available as accessory. Intelligent anti-frost protection ensures continuous ventilation and automatic summer function with passive cooling helps during summer. Also external coils for heating and cooling are available as accessories.

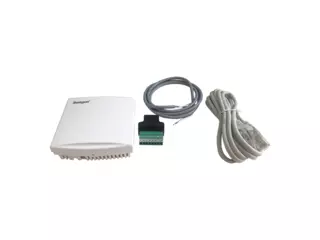

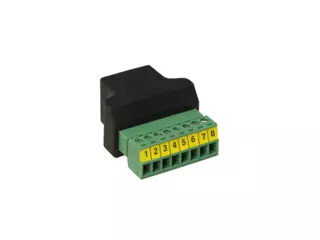

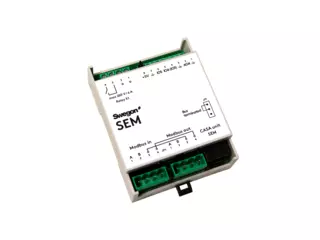

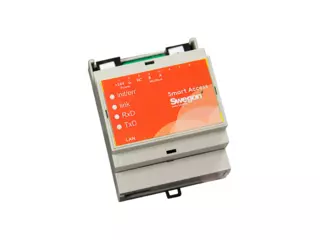

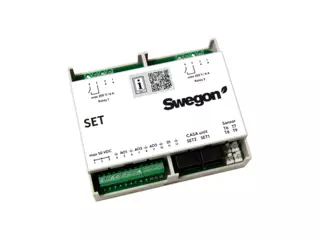

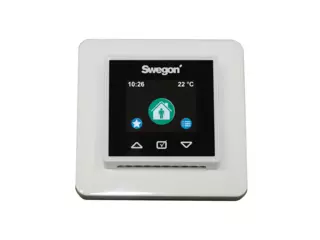

SMART - R5-H is available with Smart control system. The ventilation unit can be controlled with a separate Smart control panel, cooker hood or mobile phone (Smart Access as an accessory) and it can be connect to the automated building management system with SEM Modbus module or configurable I/O.
Modèles | Débit (m3/h) | Classe énergétique Ecodesign | Niveau sonore | Batterie de post-chauffage | Raccords de gaine | Raccordement puissance | L (mm) | W (mm) | H (mm) | Poids (kg) |
CASA R5-H Smart L/R RH | 108 - 439 | A | 38 dB | 4 x Ø 160 mm | 230 V / 10 A | 479 | 702 | 614 | 55 | |
CASA R5-H Smart L /R 700W RH | 108 - 439 | A | 38 dB | 700 W | 4 x Ø 160 mm | 230 V / 10 A | 479 | 702 | 614 | 55 |
Document | Article | Type de document | Date | Télécharger |
---|---|---|---|---|
Quide résident (pdf 394.33kB) | CASA Smart Panneau de commande | Instructions | 20.04.2021 | |
Swegon CASA tableau de sélection des machines de ventilation (pdf 752.08kB) | CASA/GENIUS | Brochure | 22.08.2024 | |
Brochure produit (pdf 8.13MB) | CASA R5-H Smart | Brochure technique | 20.04.2023 | |
Quick Guide - AHU (pdf 4.77MB) | GOLD, SILVER C, COMPACT, GLOBAL, ESENSA, CLASS UNIT, CASA, MURAL | Brochure | 25.06.2024 | |
Technical manual (pdf 4.08MB) | CASA R5-H Smart | Instructions | 13.01.2023 |
