Swegon CASA R9/15
Swegon CASA R15 ventilation unit
CASA R9

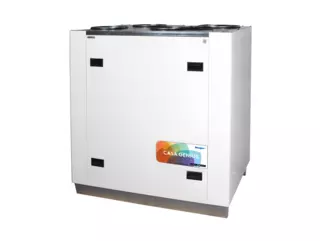

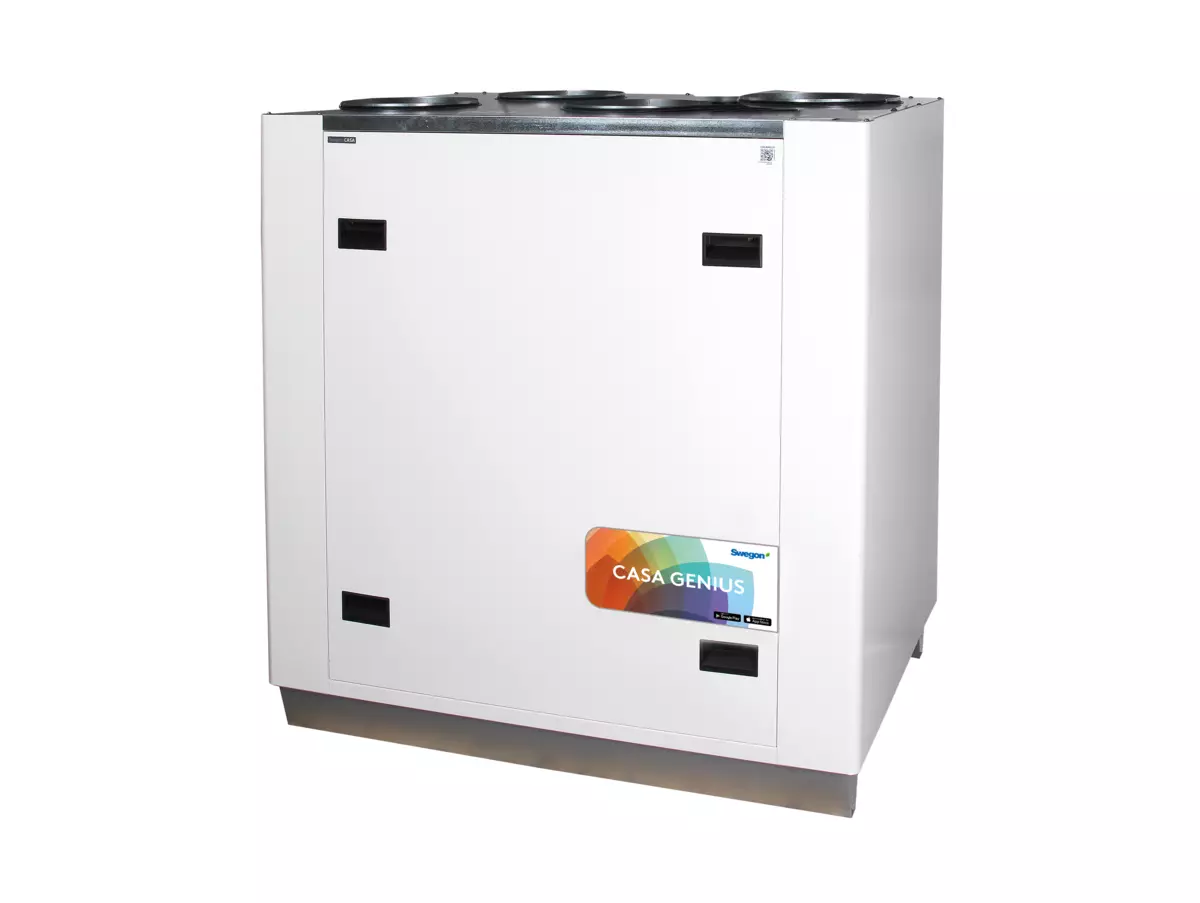

CASA R9 is a compact air handling unit with a rotary heat exchanger and controls, suitable for installation in the wall or ceiling and air flow rates of 159 – 513 CFM
- Ecodesign energy class A/A+
- Air flow range 159 – 513 cfm
- Temperature efficiency +80%
- Humidity efficiency +80%
- Automatic rotor speed control for demand-controlled humidity function as standard.
- Automatic summer function and passive cooling
- Anti-frost protection ensures continuous ventilation
- Can be connected to the automated building management system (I/O / Modbus)
- CASA Genius Control system
- Passive House Certified
CASA R9 is a compact air handling unit with rotary heat exchanger. With an airflow of up to 510 CFM, CASA R9 is suitable for decentralized ventilation applications in smaller zones and includes GENIUS, the market’s most intelligent standalone and networkable controller, with standard airflow, demand-control ventilation, and humidity control functions.
Models | Aiflow l/s | Airflow cfm | Duct connections mm | Duct connections inch | L (mm) | L (inch) | W (mm) | W (inch) | H (mm) | H (inch) |
CASA R9V left | 75-242 | 159 - 512 | 4 x Ø 250 mm | 10" | 788 | 31" | 1080 | 42,5" | 1100 | 43.3 |
CASA R9V left Sorption | 75-242 | 159 - 512 | 4 x Ø 250 mm | 10" | 788 | 31" | 1080 | 42,5" | 1100 | 43.3 |
Filter
Comprehensive detailed product information for the best selection and integration in project design
Installation, Operating, Maintenance and Safety information
Our products and services presented in an easy-to-access manner
Declarations and certificates etc
Wiring diagrams and hydraulic schemes etc
Document | Article | Document type | Date | Download |
---|---|---|---|---|
Swegon CASA R9 Genius Techincal Catalogue (pdf 5.87MB) | CASA Genius | Technical catalogue | 11/20/2024 | |
CASA R7 | R9 | R15 GENIUS Installation and commissioning instructions (pdf 2.06MB) | GENIUS | IOM Manual | 11/1/2024 | |
Swegon CASA Genius Quick guide (pdf 1.19MB) | GENIUS | IOM Manual | 4/16/2024 | |
CASA Genius eManual | (All) | Technical catalogue | 12/20/2024 |
