CASA R5
- Genius control
- Air flow range 108 - 421 m³/h
- Rotary heat exchanger with high temperature efficiency
- Ecodesign energy class A
- Low sound level
- Eurovent certified
Residential air handling unit with rotary heat exchanger (598 x 600 x 597 mm, Ø160 mm) with modular dimensions for wall/ceiling installation in houses and large apartments.
Equipped with a fifth duct connection for the possibility to connect an external cooker hood.
Intelligent CASA GENIUS control system guarantees high energy efficiency and reliability in all conditions.

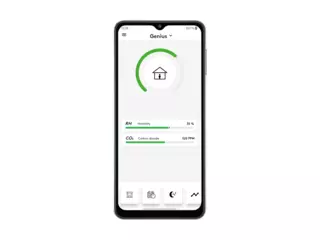

The ventilation unit can be controlled from a separate Genius control panel, CASA Genius mobile app or with Swegon CASA cooker hoods and it can be connect to the automated building management system with SEM Modbus module or configurable I/O. Commissioning wizard and app makes set-up process fast and reliable.

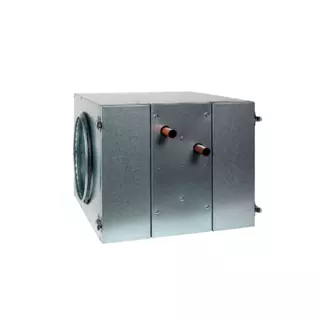

The ventilation unit has intelligent demand-controlled humidity function (RH) as standard. CO2 and VOC automation are available as accessory. Intelligent anti-frost protection ensures continuous ventilation and automatic summer function with passive cooling helps during summer. Also external coils for heating and cooling are available as accessories.
| Models | Aiflow (m3/h) | Ecodesign energy class | Reheater | Duct connections | Power connection | L (mm) | W (mm) | H (mm) | Weight (kg) |
| CASA R5 Genius L RH | 108-421 | A | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 | |
| CASA R5 Genius R RH | 108-421 | A | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 | |
| CASA R5 Genius L 800W RH | 108-421 | A | 800 W | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 |
| CASA R5 Genius R 800W RH | 108-421 | A | 800 W | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 |
| CASA R5 Smart L RH | 108-421 | A | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 | |
| CASA R5 Smart R RH | 108-421 | A | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 | |
| CASA R5 Smart L 800W RH | 108-421 | A | 800 W | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 |
| CASA R5 Smart R 800W RH | 108-421 | A | 800 W | 4 x Ø 160 mm 1 x 125 mm | 230 V / 10 A | 600 | 598 | 597 | 78 |
