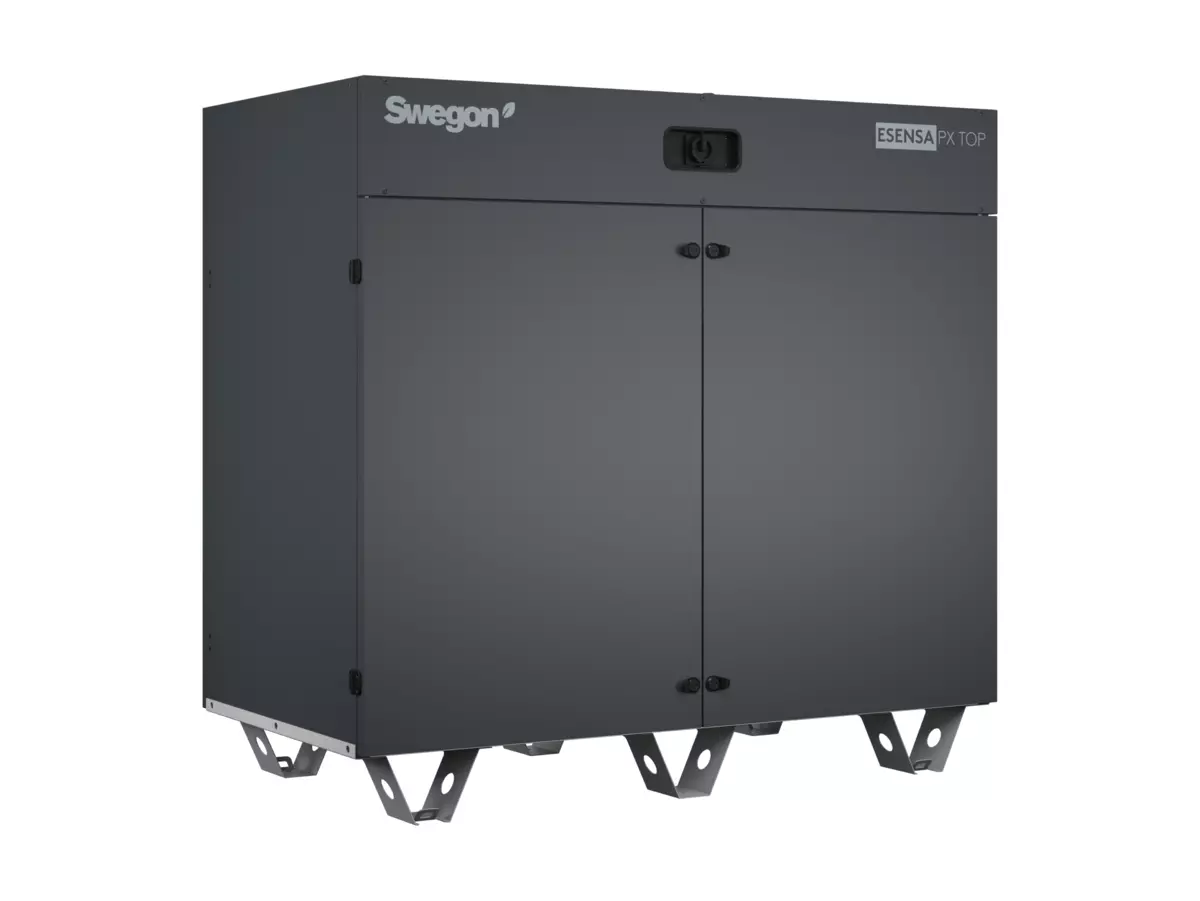

ESENSA PX TOP

Air handling unit with counterflow plate heat exchanger and top duct connections, with controls

Max. air flow 2.680 m³/h (Ecodesign)
Plate heat exchanger
Integrated heating available as an accessory - electrical/water (not factory installed)
External heaters/coolers as an accessory (water/DX)
Placement indoors
Top connections
With controls and HMI
Certified by Eurovent

Self-supporting unit with optimised design to facilitate installation and transportation within the building, equipped with pleated filters.

	Dimensions				Air flow
	Width mm	Height mm	Length mm	Weigth kg	Min air flow m³/s (Ecodesign)	Max air flow m³/s (Ecodesign)	Min air flow m³/h (Ecodesign)	Max air flow m³/h (Ecodesign)
ESENSA PX TOP 05	1400	1500	760	245	0.07	0.25	250	900
ESENSA PX TOP 09	1640	1550	885	315	0.08	0.46	300	1660
ESENSA PX TOP 12	1640	1550	1105	340	0.08	0.58	300	2100
ESENSA PX TOP 13	1640	1550	1330	395	0.1	0.74	350	2680

Eurovent

Filter

Include Accessory documents

Document	Article	Document type	Date
Installation manual defrost kit (pdf 901.64kB)	ESENSA	IOM Manual	02/09/2024
Datasheet ESENSA TOP (pdf 5.06MB)	ESENSA	Technical catalogue	10/12/2024
Installation manual waterbased coil (pdf 1.09MB)	ESENSA	IOM Manual	17/06/2024
Installation manual ESENSA PX Top (pdf 1.63MB)	ESENSA TAC6	IOM Manual	09/04/2024
FUNCTION MANUAL, INSTALLATION & COMMISSIONING TAC7 (pdf 1.76MB)	TAC7	IOM Manual	31/01/2025
MANUAL FOR ALARMS AND INFORMATION MESSAGES TAC7 (pdf 837.91kB)	TAC7	IOM Manual	21/01/2025
Installation manual ESENSA PX Top (pdf 1.92MB)	ESENSA TAC7	IOM Manual	28/01/2025
Eurovent certificate (pdf 198.19kB)	GLOBAL/ESENSA	Quality	19/12/2024
Installation manual ESENSA PX Top (pdf 1.92MB)	ESENSA TAC7	IOM Manual	28/01/2025
Operation & maintenance manual ESENSA (pdf 1.73MB)	ESENSA TAC7	IOM Manual	28/01/2025
Control manual ESENSA (pdf 2.12MB)	ESENSA TAC6	IOM Manual	24/05/2024
Operation & maintenance manual ESENSA (pdf 3.02MB)	ESENSA TAC6	IOM Manual	24/05/2024
Installation manual circular damper (pdf 1.94MB)	ESENSA/GLOBAL	IOM Manual	22/07/2024
Quick Guide - AHU (pdf 4.77MB)	GOLD, SILVER C, COMPACT, GLOBAL, ESENSA, CLASS UNIT, CASA, MURAL	Brochure	09/12/2024
EC declaration of conformity ESENSA (pdf 122.73kB)	ESENSA	Quality	21/04/2023
Operation & maintenance manual ESENSA (pdf 2.68MB)	ESENSA TAC7	IOM Manual	28/01/2025
Installation manual ESENSA PX Flex (pdf 3.2MB)	ESENSA TAC7	IOM Manual	28/01/2025
