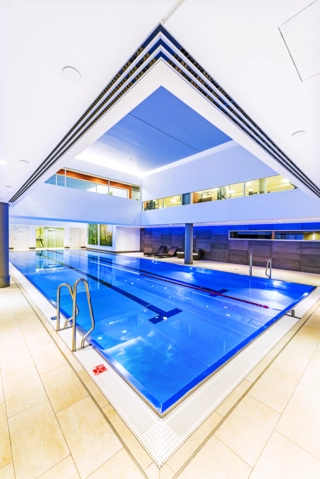

Product in context
VZ-41
Linear slot diffuser for ceiling and wall installation - 41 mm
- Available as standard modules or wall-to-wall design
- Modular length: 1000 mm, 1500 mm, 2000 mm
- Standard colour White RAL 9003
- One, two, three or four slots (more slots on request)
- Multivariable adjustable
- Plane distribution pattern as well as the possibility to adjust the distribution pattern in a range of 180°
- Lightweight aluminum extrusion profile
- Naturally anodized or coated (RAL or NCS)
- Mitred corner modules
- Air deflectors made of impact-resistant plastic
- 5 standard colors
- Further Options:
- Support profiles
- End bracket, left and/or right
- Endplate
- Perforated plate throttle in the socket
- Galvanized steel Junction box (optionally insulated)
| VZ-41 Vertical spread | ||||||||
| Number of slots (n) | LWA = 25 dB | LWA = 30 dB | LWA = 35 dB | LWA = 40 dB | ||||
| V l/s | V (m3/h) | V l/s | V (m3/h) | V l/s | V (m3/h) | V l/s | V (m3/h) | |
| 1 | 26 | 92 | 30 | 109 | 36 | 129 | 42 | 152 |
| 2 | 35 | 127 | 43 | 154 | 52 | 186 | 62 | 224 |
| 3 | 46 | 166 | 55 | 199 | 66 | 238 | 79 | 285 |
| 4 | 54 | 196 | 66 | 237 | 79 | 286 | 96 | 346 |
| VZ-41 Horizontal spread | ||||||||
| Number of slots (n) | LWA = 25 dB | LWA = 30 dB | LWA = 35 dB | LWA = 40 dB | ||||
| V l/s | V (m3/h) | V l/s | V (m3/h) | V l/s | V (m3/h) | V l/s | V (m3/h) | |
| 1 | 24 | 88 | 29 | 105 | 34 | 124 | 41 | 147 |
| 2 | 38 | 137 | 45 | 163 | 54 | 195 | 65 | 233 |
| 3 | 47 | 168 | 56 | 201 | 67 | 242 | 81 | 290 |
| 4 | 57 | 206 | 69 | 248 | 83 | 298 | 99 | 358 |
