GRL

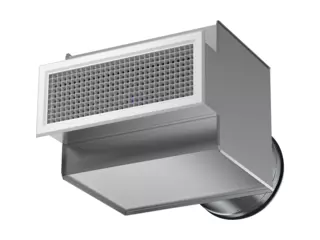

Rectangular egg crate grille for transfer/extract air and wall/ceiling mounting

For extract air and transfer air
91% free area
Manages large air flows
Cleanable
Can be mounted in an FHA or FHB mounting frame or a TRG commissioning box
Standard colour White RAL 9003
- 5 alternative standard colours
- Other colours upon request

Calculate with your requirements

Rectangular egg crate grille. This gives low pressure drop which makes GRL suitable for high air volumes. In order to regulate or measure the air flow, GRL must be used with the commissioning box TRG.

AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *)
GRL Size	25 dB(A)		30 dB(A)		35 dB(A)
GRL Size	l/s	m3/h	l/s	m3/h	l/s	m3/h
200-100	25	90	40	144	55	198
300-100	40	144	70	252	100	360
400-100	47	169	80	288	130	468
500-100	70	252	105	378	150	540
300-150	80	288	120	432	160	576
400-150	115	414	150	540	190	684
500-150	100	360	165	594	230	828
400-200	115	414	195	702	270	972
500-200	125	450	265	954	350	1260
600-200	145	522	280	1008	375	1350
600-300	215	774	400	1440	510	1836
The table shows data for extract air, GRL in combination with TRG and a pressure drop of 50 Pa. *) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m² room absorption area.
