VENTAMIC

Hybrid system with building mass connection

In combination with A11-C, SPECTRA M-C
Very high heating & cooling capacity
Active area ratio: 75 %
Superior sound absorption values (class A)
Building mass connection
Sound power level Lw: < 35 dB (A)
Fresh air intake is silent and draught-free
Components can be integrated

Hybrid system with building mass connection

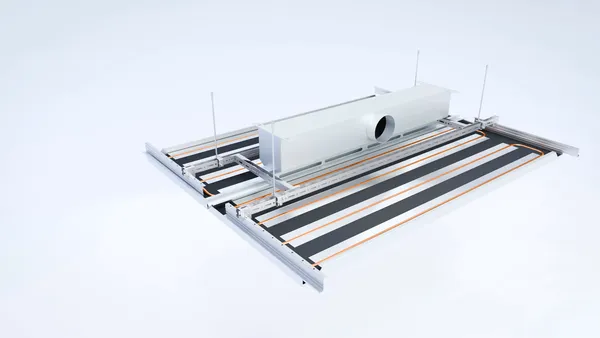

VENTAMIC + the radiant metal ceiling A11-C or SPECTRA M-C are highly efficient ceiling system with integrated supply air and superior acoustic effectiveness. The VENTAMIC hybrid system delivers highly effective ventilation results. The air speed in occupied areas remains extremely low thanks to the Coanda effect.

The supply air jet generates negative pressure in the ceiling cavity, which increases the convective capacity and significantly heightens the heating and cooling effect of the water-based radiant ceiling. Furthermore, this system is using the building mass to store energy temporarily. With this function, the heat-load peaks can be broken down. The system works according to the principle of thermally active buliding systems.

Technical description

Functionality

System combination:

+ A11-C
+ SPECTRA M-C

Dimensions:

Ceiling panel construction:
- Installation height: min. 250 mm

Panel dimensions standard:
- Panel length: 600 – 3000 mm
- Panel width: 400 – 1200 mm
- Panel height: 30 – 50 mm
Custom dimensions on request

Capacity water:

Mass storage capacity: up to 10 W/m² panel area

A11-C, SPECTRA M-C
Cooling: up to 119 W/m² (ΔT: 8 K)
Active area ratio: 75 %

Heating: up to 104 W/m² (ΔT: 15 K)

Acoustics:

Sound absorption αw: up to 0,90
Sound absorption class A, EN ISO 11654

A11-C

Radiant metal ceiling

SPECTRA M-C

Radiant metal ceiling
