AQUILO

Hybrid system with building mass connection

In combination with A11-S, A11-C, SPECTRA M-S, SPECTRA M-C
Very high heating & cooling capacity
Active area ratio radiant metal ceiling sail: 85 %
Active area ratio radiant metal ceiling: 75 %
Superior sound absorption values (class A)
Building mass connection (A11-C, SPECTRA M-C)
Sound power level Lw: < 25 dB (A)
Fresh air intake is silent and draught-free thanks to ceiling panel perforations
Components can be integrated

Hybrid system with building mass connection

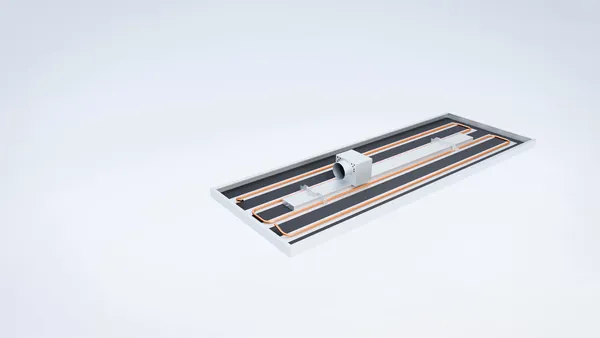

AQUILO + the A11 or SPECTRA M radiant ceiling system are highly efficient radiant ceiling systems with integrated supply air and superior acoustic effectiveness. The AQUILO hybrid system delivers highly effective ventilation results. At the same time, the supply air jet on the back of the ceiling panel increases the convective capacity, which supports the heating and cooling effect in the room without a risk of draughts.

The AQUILO hybrid system with A11-C and SPECTRA M-C ceilings incorporate the storage mass for dissipating heating loads using the thermally active building system principle.

The A11-S sail allows the use of our specially developed Convector Wings to increase performance.

Technical description

Functionality

System combination:

+ A11-S + ARCHISONIC®
+ A11-C + ARCHISONIC®
+ SPECTRA M-S
+ SPECTRA M-C

Dimensions:

Ceiling panel construction:
- Installation height
- Typ 1 channel 150 – 170 mm
- Typ 2 channel 170 – 195 mm
- Typ 3 channel 195 – 220 mm

Panel dimensions standard:
- Lenght ceiling panel: 800 – 3000 mm
- Width Type 1 channel: 400 – 1200 mm
- Width Type 2 channel: 600 – 1200 mm
- Width Type 2 channel: 900 – 1200 mm
Special dimensions on request

Capacity water:

Mass storage capacity:
Sail up to 10 W/m² panel area
Closed ceiling: up to 5 W/m² panel area

A11-S, SPECTRA M-S
Cooling: up to 122 W/m² (ΔT: 8 K)
Active area ratio: 85 %

Heating: up to 138 W/m² (ΔT: 15 K)

A11-C, SPECTRA M-C
Cooling: up to 114 W/m² (ΔT: 8 K)
Active area ratio: 75 %

Heating: up to 108 W/m² (ΔT: 15 K)

Acoustics:

Sound absorption αw: up to 0,90
Sound absorption class A, EN ISO 11654
Sound power level Lw: < 25 dB (A)

A11-C

Radiant metal ceiling

A11-S

Radiant metal ceiling sail

SPECTRA M-C

Radiant metal ceiling

SPECTRA M-S

Radiant metal ceiling sail
