PARASOL
The PARASOL family consists of products with 4-way air distribution, optimized to quickly mix the supply air with the room air, which provides better comfort in the room. PARASOL comfort modules are very well suited in offices, open landscapes and conference rooms.
A comfort module for every requirement
PARASOL is a complete product family. The comfort modules are optimized to quickly mix the supply air with the room air, which provides better comfort in the room. In heating applications, this technique can be utilised advantageously to convey heat from the ceiling in a better way and attain good comfort in the occupied zone.
A comfort module differs from a climate beam by distributing air in four directions instead of two. This maximises the area for the mixture of supply air with the room air, which enables you to take out a high capacity, but without occupying more ceiling space than necessary.
| PARASOL ZENITH | PARASOL (CLASSIC) | REACT PARASOL ZENITH | PARASOL ZENITH VAV | WISE PARASOL ZENITH | |
 |
 |
 |
 |
 |
|
| Function | |||||
| Cooling |   |
|
|
|
|
| Heating | |
|
|
|
|
| Supply air | |
|
|
|
|
| Air flow | |||||
| Constant (CAV) | |
|
|||
| Variable (VAV) | |
|
|
||
| Demand control (DCV) | |
||||
| Installation | |||||
| Integrated | |
|
|
|
|
| Suspended | * | * | * | * | * |
* Can also be installed suspended with the aid of ready-to-use accessories

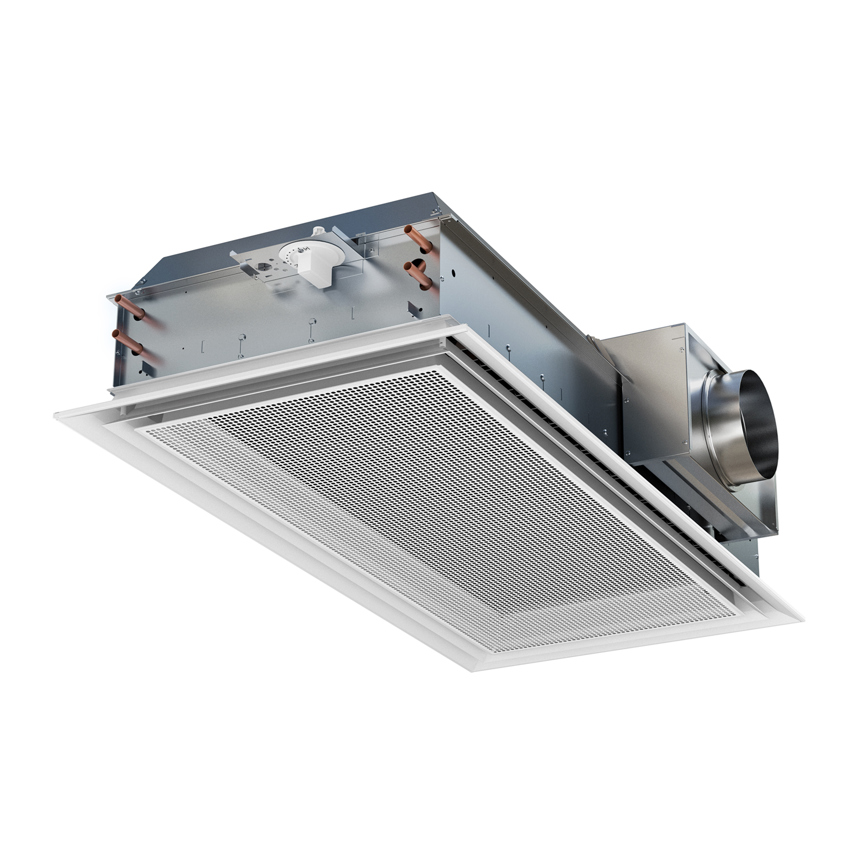

PARASOL Zenith
PARASOL Zenith has been developed to handle large variations in the air flow rate, cooling and heating loads. With its wide working range, the potential for tenant adaptations is increased without the need to make extensive changes in the system as a whole.
The high cooling capacity also enables a lower duct pressure or a higher cooling water temperature can be used, which saves energy and even improves room comfort further. With its low weight, its compact dimensions and optional air connections on short or long sides, PARASOL Zenith is also easy to install.
Read more about PARASOL Zenith

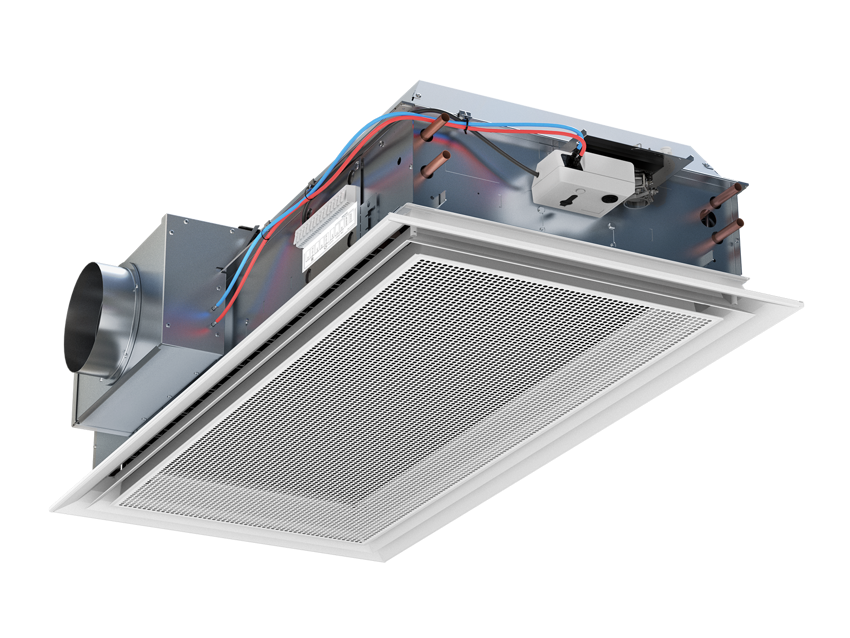

REACT Parasol Zenith
REACT Parasol Zenith is the latest product in our PARASOL family. It is a comfort module that has been developed with integrated, pressure-independent VAV control. Thanks to its smart solution, it can easily be integrated by a control equipment supplier via Modbus communication.
REACT Parasol Zenith is a simple and effective solution that ensures the indoor climate room by room in both new construction and renovation projects.

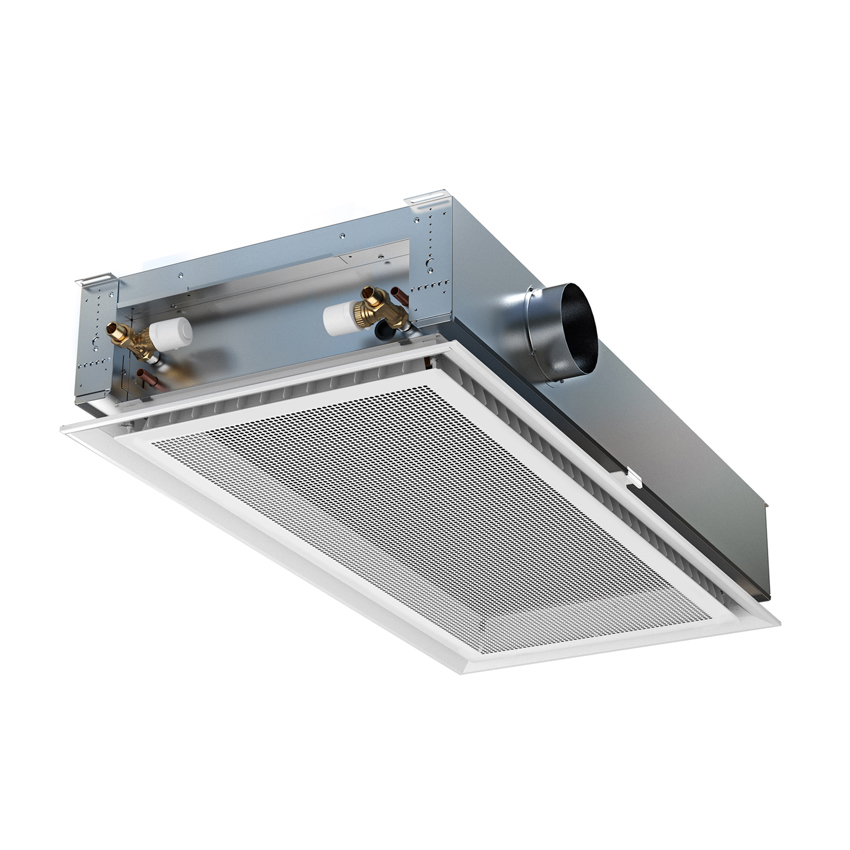

Read more about REACT Parasol ZenithPARASOL Classic
PARASOL Classic is the original in our product family. With good performance and large opportunities to adapt the air distribution as required in the room, PARASOL Classic is a reliable and cost effective part of your indoor climate system.
Read more about PARASOL Classic
Easy installation and commissioning
Showing 6 of 6 products
