GLOBAL PX TOP

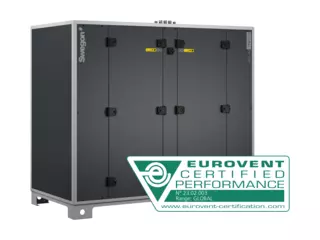

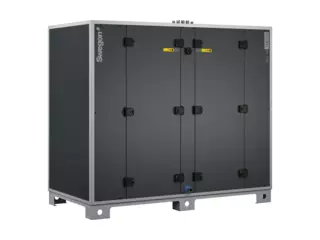

Air handling unit with counterflow plate heat exchanger and top duct connections, with controls.
- Electrical/water (factory installed)
- Insulated casing for external heaters/coolers as an accessory (water/DX)
- Placement indoors
- Top connection
- With controls and HMI
- Certified by Eurovent
Two different fan types available (Composite or aluminum). Integrated silencers for supply air flow as an accessory (factory installed).
| Dimensions | Air flow | |||||||
| Width mm | Height mm | Length mm | Weigth kg | Min air flow m³/s (Ecodesign) | Max air flow m³/s (Ecodesign) | Min air flow m³/h (Ecodesign) | Max air flow m³/h (Ecodesign) | |
| GLOBAL PX TOP 05 | 610 | 1625 | 1680 | 340 | 0.06 | 0.26 | 200 | 950 |
| GLOBAL PX TOP 08 | 815 | 1625 | 1680 | 400 | 0.06 | 0.42 | 200 | 1500 |
| GLOBAL PX TOP 10 | 815 | 1725 | 1960 | 500 | 0.08 | 0.51 | 300 | 1850 |
| GLOBAL PX TOP 12 | 995 | 1725 | 1960 | 560 | 0.08 | 0.68 | 300 | 2450 |
| GLOBAL PX TOP 14 | 1182 | 1725 | 1960 | 620 | 0.08 | 0.78 | 300 | 2800 |
| GLOBAL PX TOP 18 | 1382 | 1725 | 1960 | 710 | 0.11 | 1 | 400 | 3600 |
