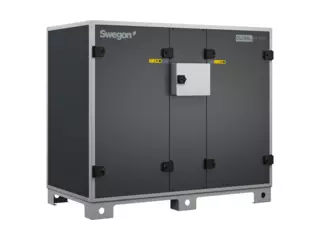

GLOBAL RX TOP
Air handling unit with rotary heat exchanger and top duct connections, with controls.
- Max. air flow 3.050 m³/h (Ecodesign)
- Rotary heat exchanger
- Integrated heating available as an accessory - electrical/water (factory installed)
- Insulated casing for external heaters/coolers as an accessory (water/DX)
- Placement indoors
- Top connection
- With controls and HMI
- Certified by Eurovent
Two different fan types available (Composite or aluminum).
| Dimensions | Air flow | |||||||
| Width mm | Height mm | Length mm | Weigth kg | Min air flow m³/s (Ecodesign) | Max air flow m³/s (Ecodesign) | Min air flow m³/h (Ecodesign) | Max air flow m³/h (Ecodesign) | |
| GLOBAL RX TOP 05 | 815 | 1315 | 1530 | 340 | 0.03 | 0.26 | 100 | 950 |
| GLOBAL RX TOP 08 | 815 | 1315 | 1530 | 340 | 0.06 | 0.36 | 200 | 1300 |
| GLOBAL RX TOP 13 | 995 | 1465 | 1680 | 420 | 0.06 | 0.64 | 200 | 2300 |
| GLOBAL RX TOP 16 | 1182 | 1465 | 1680 | 470 | 0.08 | 0.85 | 300 | 3050 |
