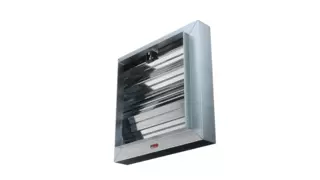

FIRESHIELD

** Cassette Mechanism**

• Patented design.
• Made of Polyphenylene sulphide (PPS) resin reinforced with 40%glass (GF-PPS).
• Technically advanced engineering polymer.
• PPS is stable at temperatures up to 200 °C.
• Cassette construction is of very high strength and has excellent creep and fatigue resistance.
• Low smoke and toxic emissions in fire conditions.
• Halogen free.
• PPS has a very low moisture absorption.
• PPS is corrosion resistant.
• The Cassette construction is environmentally friendly (recyclable material).
• The new Cassette is retrofittable to existing FireShield Dampers (by use of a simple optional adaption bracket. Part Number: CNNN01981).
• One Cassette to suit all damper material options.

Casing Features The spigotted casing with continuously welded corners and spigot connections, makes these dampers suitable for inclusion into air distribution systems to the test methods of Eurovent Class A, B & C and HVCA Ductwork specification DW144. These galvanised casings are manufactured with either all square, rectangular and circular ductwork

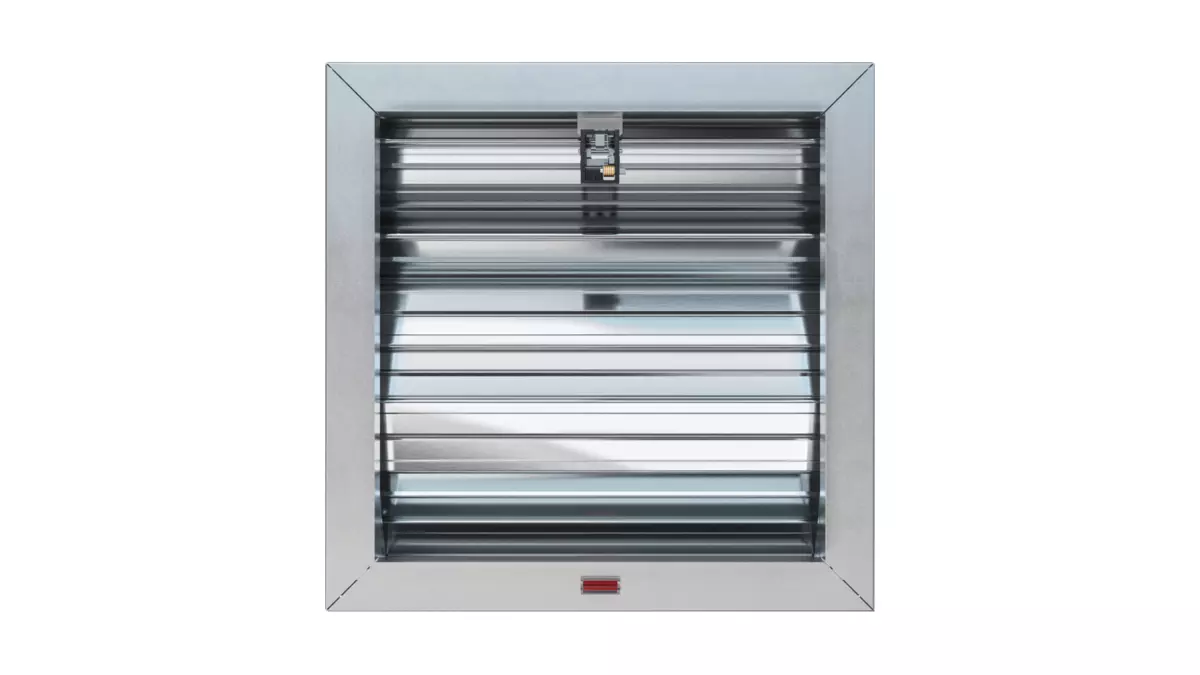

Blade Features The Type 1.4016 (430) Ferritic Stainless Steel folding blade curtain, providing maximum strength, forms a fire shield. The wide profile blades maximise the damper free area and ensure compact grouping to minimise blade stacking height.

Stainless Steel Closure Springs Stainless Steel constant tension springs are fitted and positioned out of the airstream to close and latch the damper, regardless of vertical or horizontal operation.

FireShield™ I/F Installation Frame

CE Marked ‘E’ Classified Fire Dampers c/w HEVAC / HVCA Installation Frame. Typically installed into concrete/ masonry walls and floors.

• HEVAC / HVCA Installation frame (I/F).
• CE marked to EN 15650.
• Fire tested to EN 1366-2.

FireShield™ DWFX-C Dry Wall Fix Cleats

CE Marked ‘E’ Classified Fire Dampers c/w Dry Wall Fix Cleats. Typically installed prior to encasement by the dry wall partition.

• Dry wall fix ‘Cleats’ Typically fixed prior to encasement by the dry wall partition.
• CE marked to EN 15650.
• Fire tested to EN 1366-2.

FireShield™ DWFX-F Flange and Cleats

CE Marked ‘‘E’ Classified Fire Dampers c/w Dry Wall Fix Flange and Cleats. Typically installed in to existing concrete / masonry, dry walls or Ablative BATT infills.

• CE marked to EN 15650.
• Fire tested to EN 1366-2.

FireShield™ DWFX-3F Flange and Cleats

CE Marked ‘‘E’ Classified Fire Dampers c/w Dry Wall Fix Flange and Cleats. Typically installed in to existing concrete / masonry and dry walls up against the construction edge (Soffit).

• CE marked to EN 15650.
• Fire tested to EN 1366-2.
