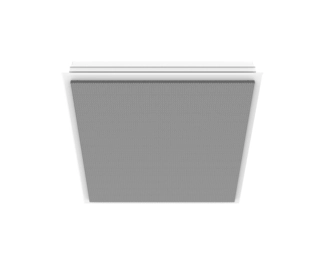

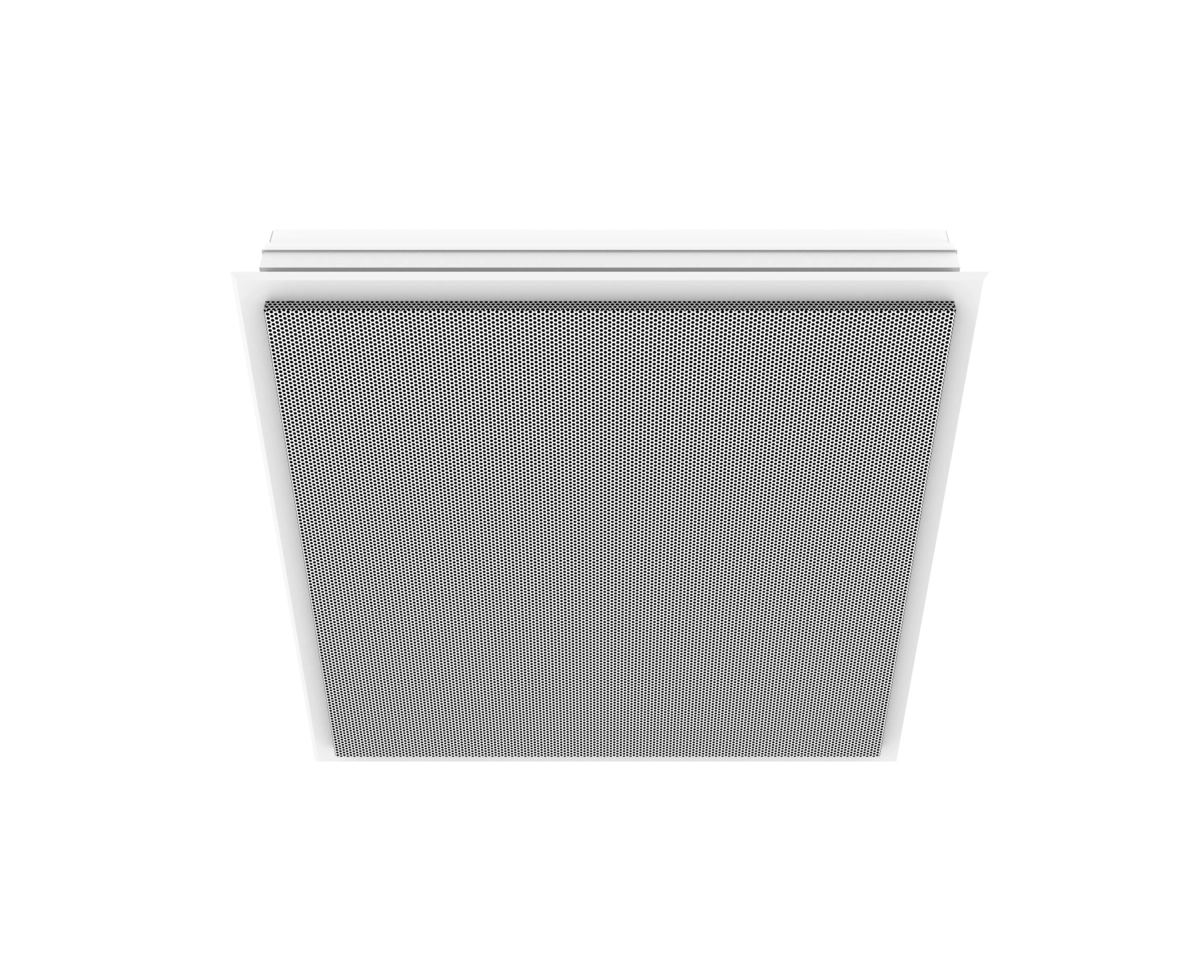

Product Image
HERON CPD Ceiling
Perforated face diffusers
- 35 l/s - 230 l/s
- 4 Configurations *2 to 4 way blow *Tile replacement modules 300 / 600 / 1200
- Extract module with flush face
- Mounting – Ceiling
- Removable faceplate
The HERON CPD range of diffusers have been designed for use in commercial applications and are particularly suited to projects with high air change rates and high cooling differentials.
HERON CPD diffusers are suitable for installation in 300, 600 and 1200mm tile module systems and the range includes square and rectangular types.
The aluminium face plate may be pivoted down and removed to ease installation, commissioning and maintenance and is held closed by spring clips. The diffusers are constructed from aluminium extruded frames and perforated face plates with plated steel, square, rectangular and circular connections suitable for top entry ducts.
