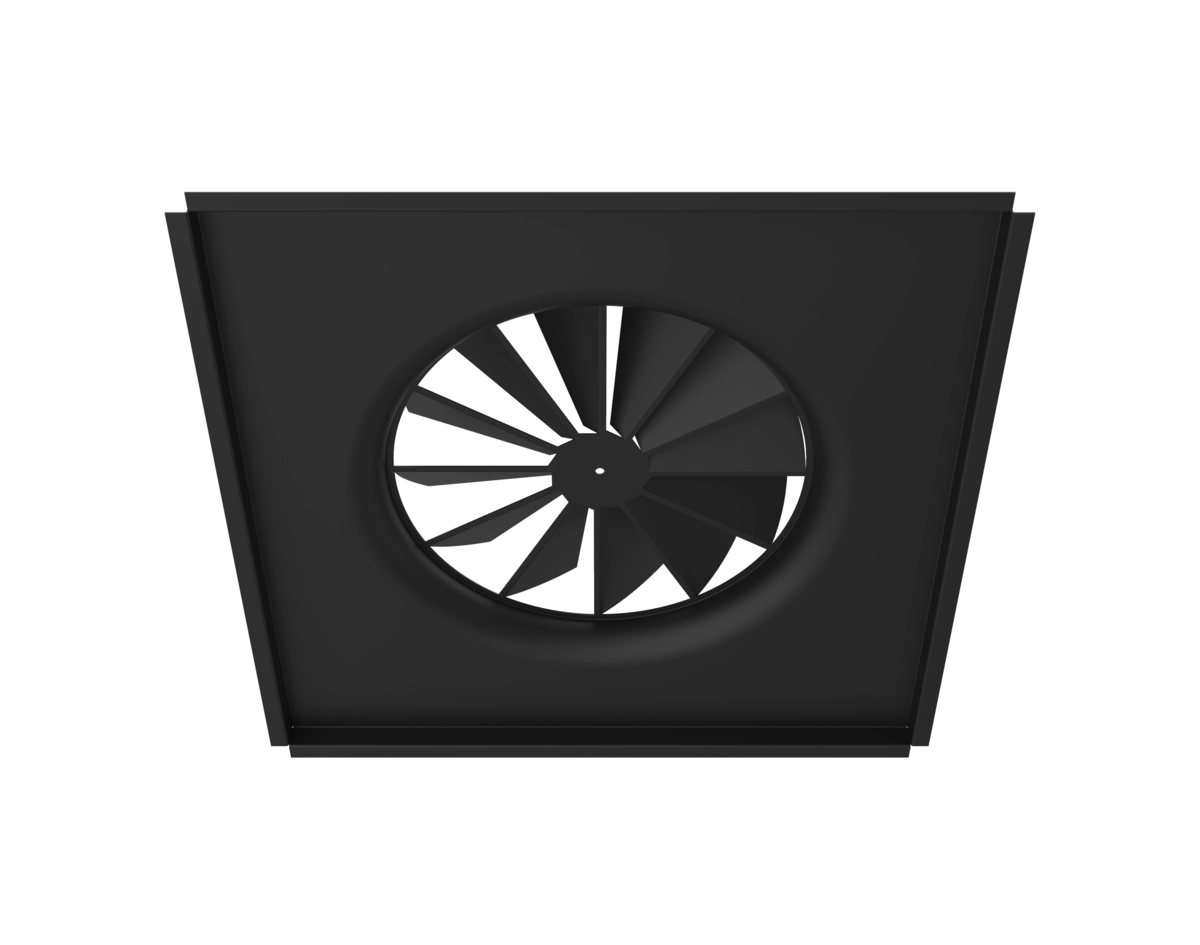

SDF S-LCT Ceiling
Concealed Swirl Diffusers for Perforated Tiles
- 30 l/s – 220 l/s
- Modular 600 x 600 size
- 5 standard duct sizes
- Mounting – Lay on ceiling tile
- Hidden diffuser
- For mounting behind a >35% free area tile
- High induction
The SDF S-LCT has been developed for use when mounted directly on top of a ceiling tile (supplied by others). The diffuser is supplied in matt black as standard and the outer flange has a black gasket to seal against the back of the tile and offers a high induction effect.
Notes: Tested at 40% free area perforated ceiling tile. Different size perforation will effect the tested data. It is not recommended to go below 35% free area without first consulting head office.
