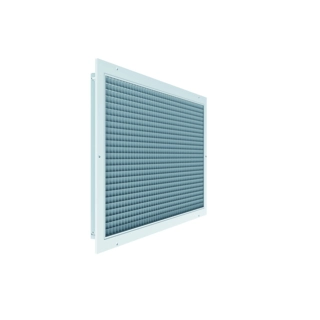

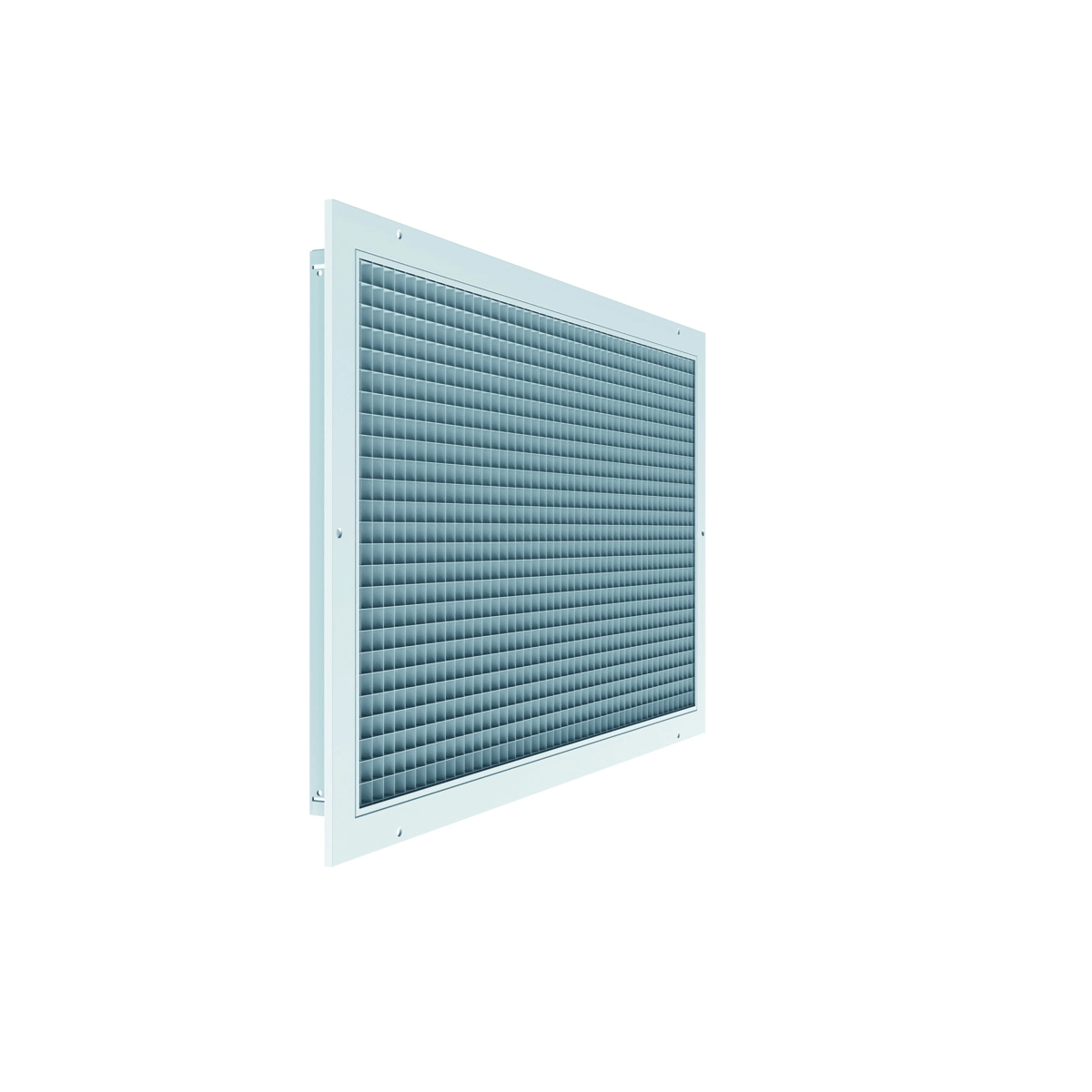

GC5
Eggcrate grilles
- Up to 3880 l/s
- 3 configurations
- Mounting – Ceilings / sidewall / duct
- Fixed & removable coreoptions
- High free area
- Opposed blade damper option
The GC5 has been designed to satisfy all exhaust applications in H&V systems.
The various cores may be selected for both engineering and architectural requirements. Cores are constructed from aluminium extrusions supported on integral aluminium tubes; mesh cores are perforated aluminium sheet
