H Series

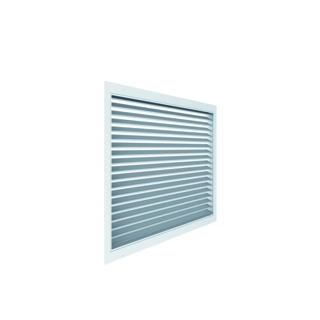

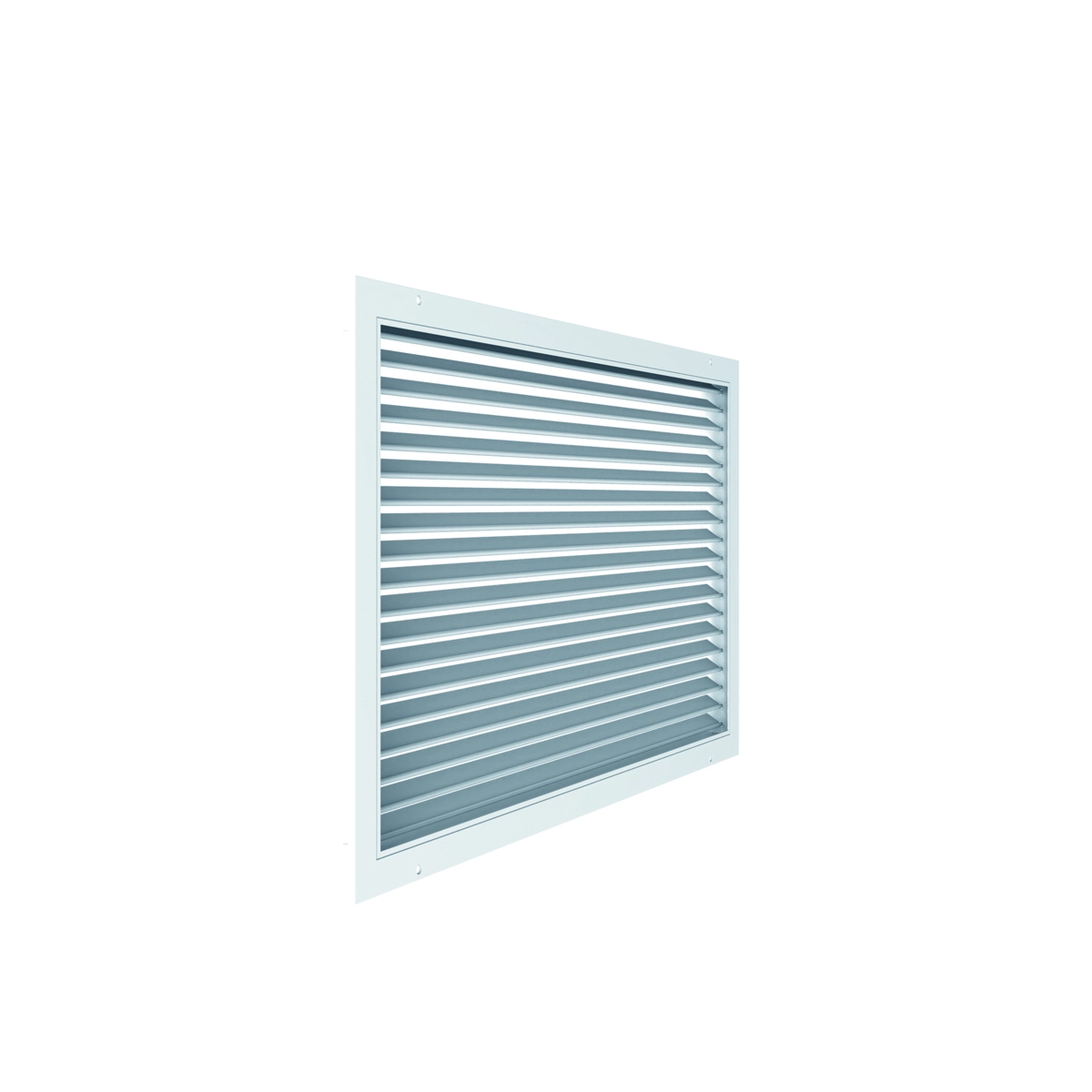

Adjustable blade bar grilles for supply / extract applications
- 25 l/s - 2000 l/s
- 4 configurations
- Mounting – Sidewall/bulkhead/duct
- High free area
- Adjustable blades to allow jet spread/deflection
- Opposed blade damper option
The H Series has been designed to satisfy all exhaust applications in H & V systems. The various cores may be selected to satisfy both engineering and architectural requirements. Cores are constructed from aluminium extrusions supported on integral aluminium tubes; mesh cores are perforated aluminium sheet.
