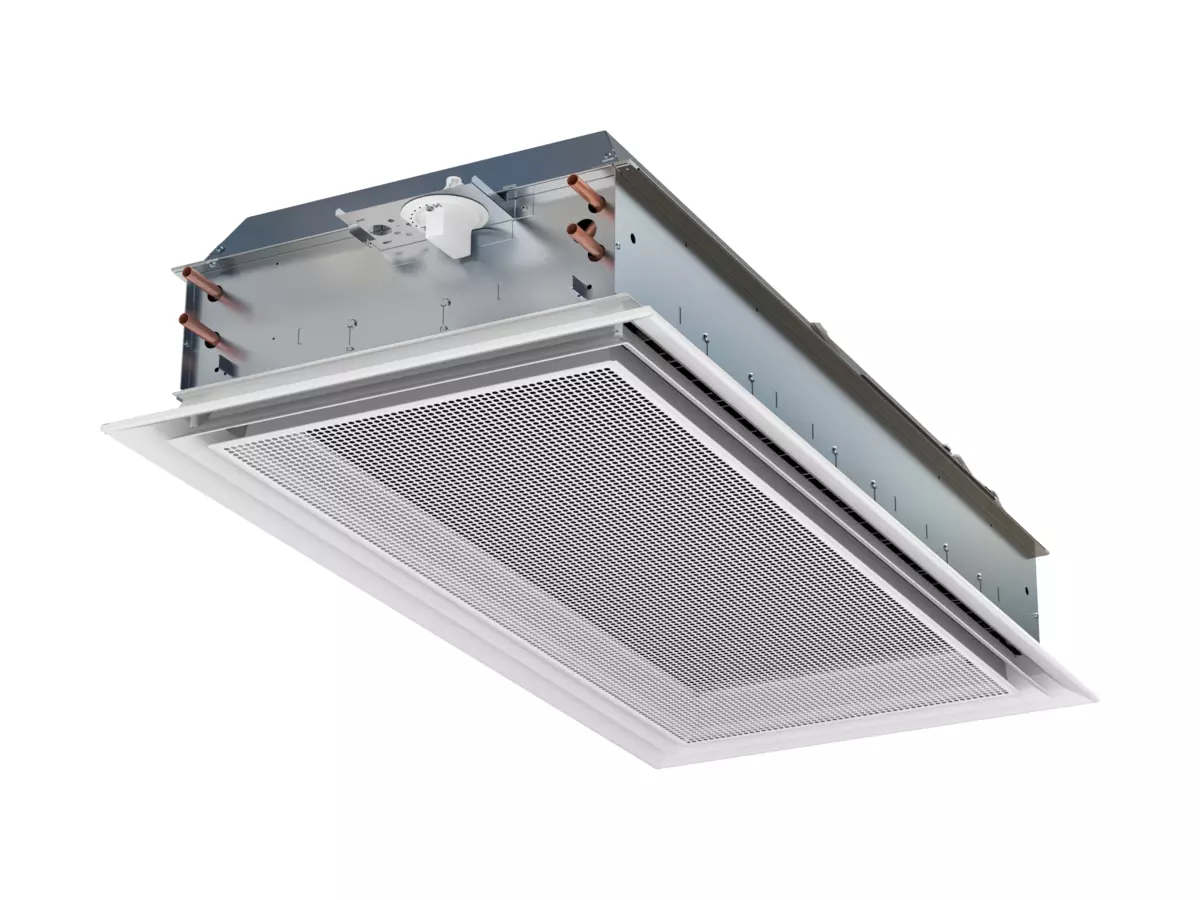

Product view, Air connection=Side 2, L=1200
PARASOL Zenith with design kit and coanda frame for suspended installation

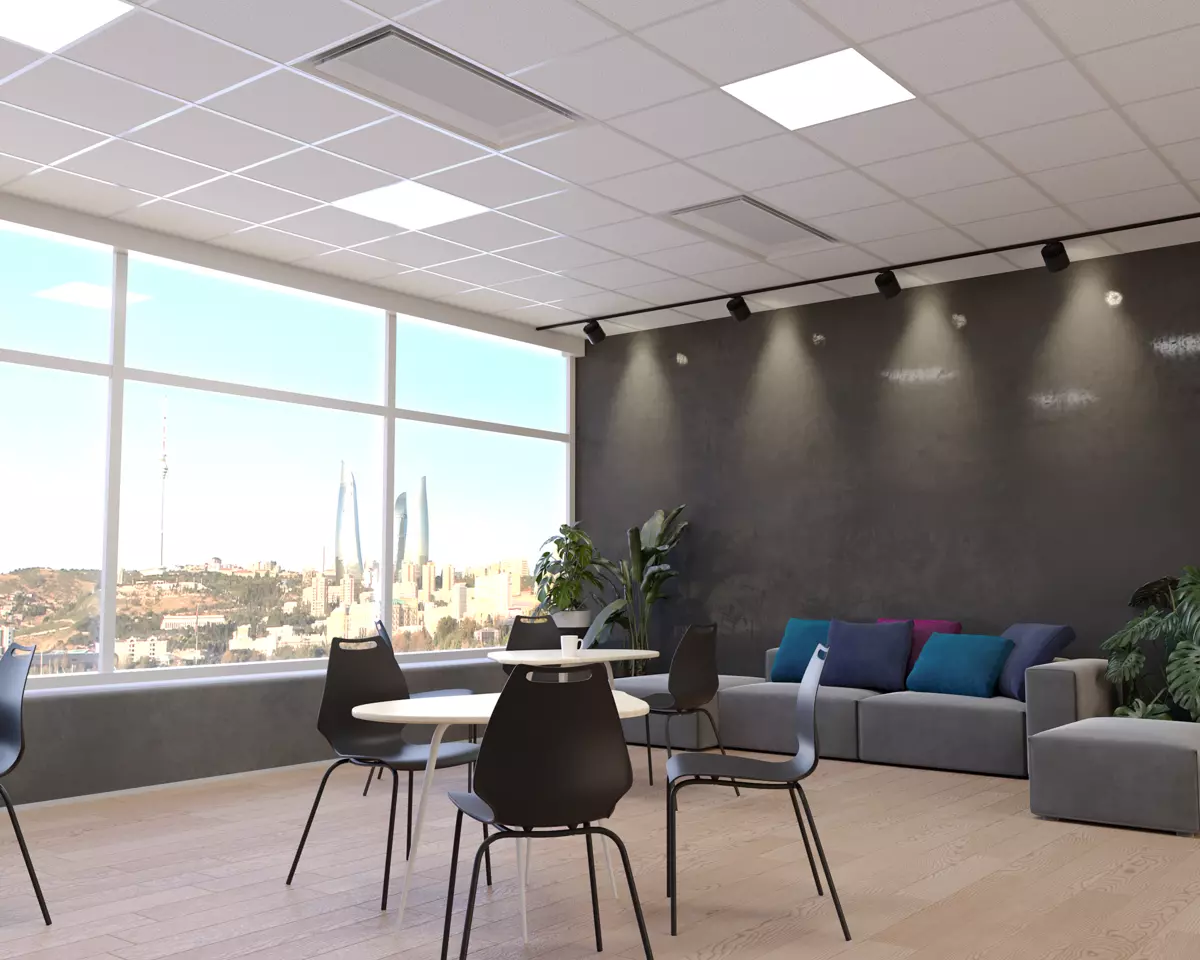

Product in context

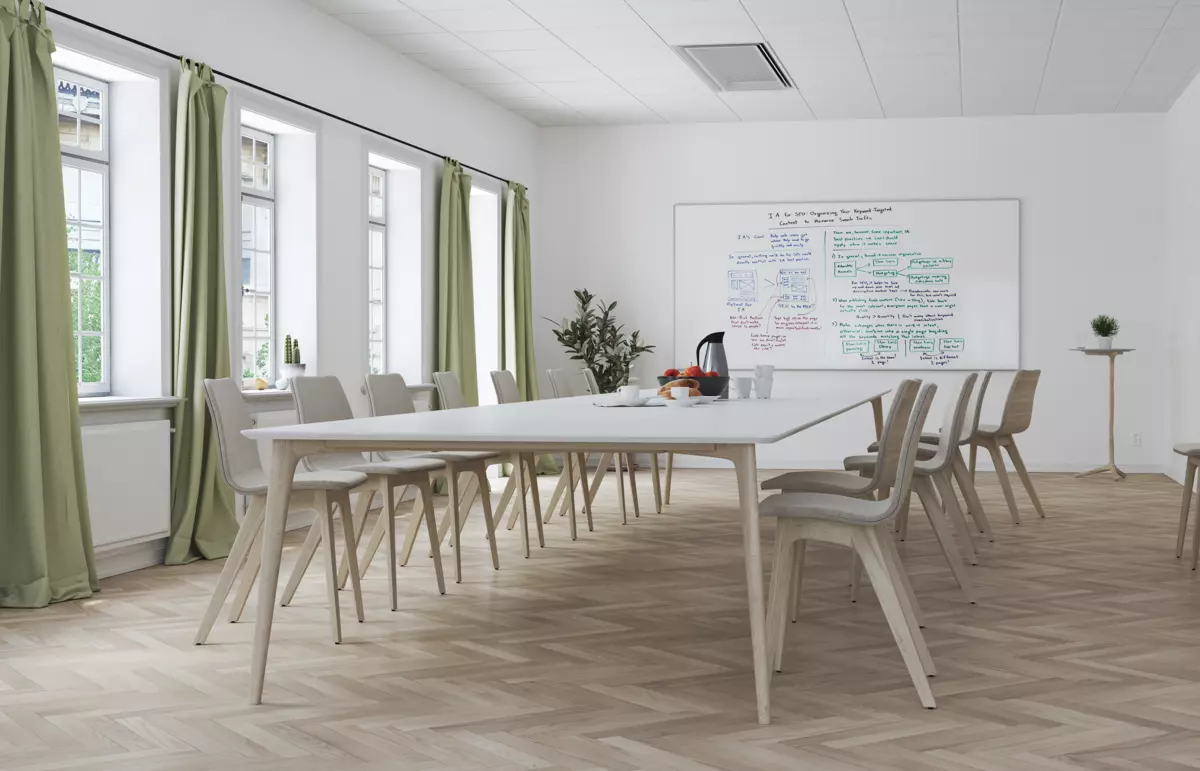

Product in context

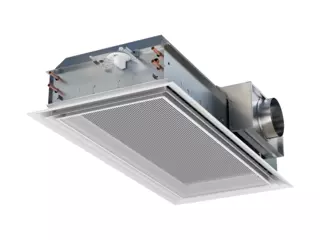

Product view, Air connection=Side 1, L=1200

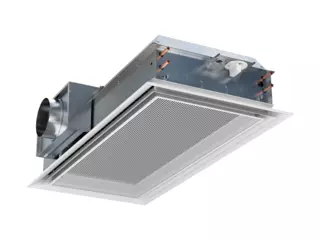

Product view, Air connection=Side 4, L=1200

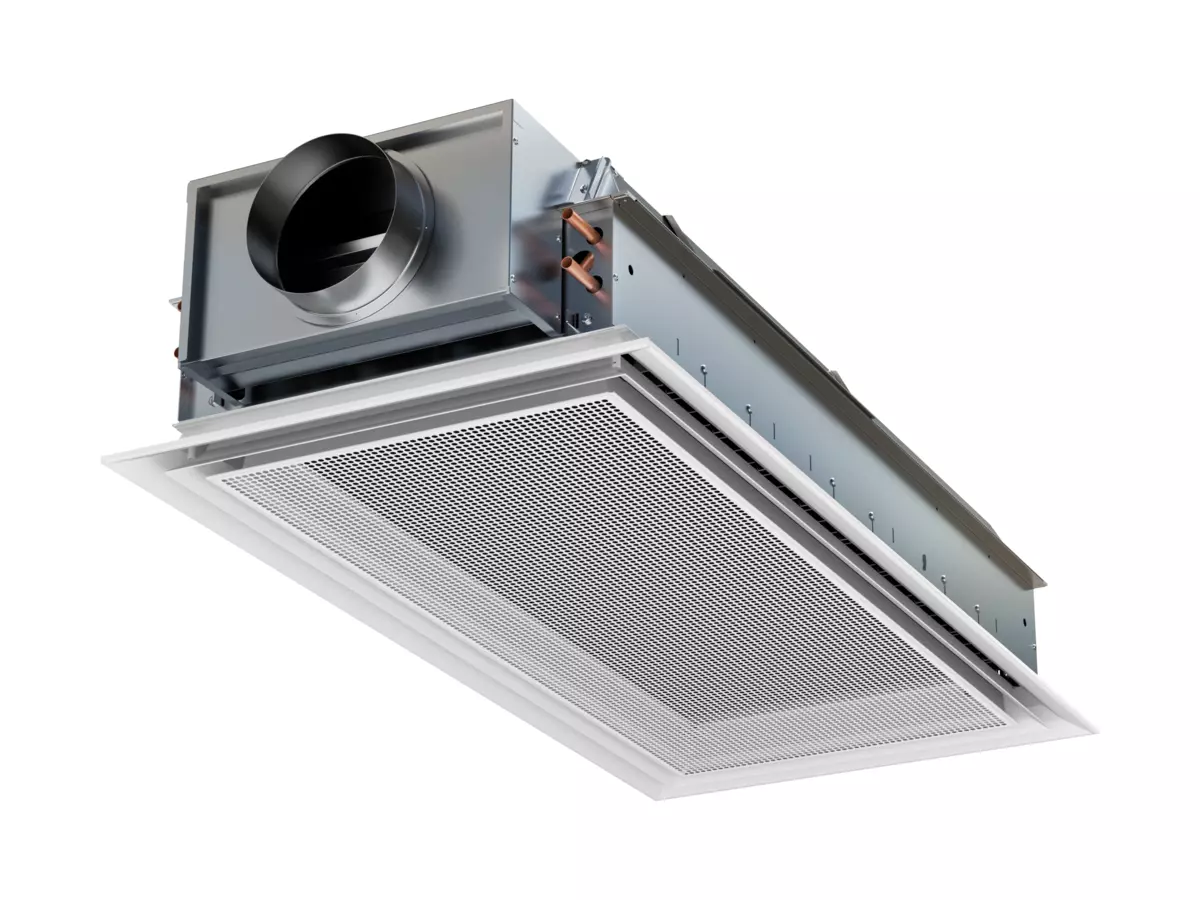

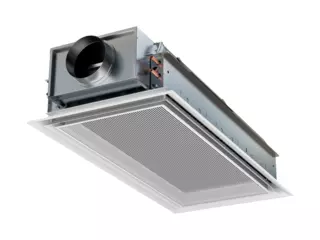

Product view, Air connection=Side 3, L=1200
PARASOL Zenith with coanda frame for suspended installation
Design kit and coanda frame -different colours
PARASOL Z DK and CF in different colours
PARASOL Zenith
High performance 4-way distribution comfort module with cooling, heating and ventilation
Integrated comfort module
- High performance 4-way distribution comfort module with cooling, heating and ventilation
- Large span between the lowest and highest air flow
- Few variants for easier sizing and variable air flow control
- Optimised for low energy consumption
- Manages high air flow at low driving pressure
- Easy installation on account of low weight, compact dimensions and optional air connections on short or long sides
- Hygiene design as an option for hospital applications
- Quick bracket for time saving installation
- Can be integrated in the WISE-system
- Upgradable from CAV to VAV
- For suspended mounting, a design kit and a coanda frame are available as accessories
- Standard colour White RAL 9003
- 5 alternative standard colours
- Other colours upon request
| Variant | Supply air | Performance | ||||
| Size | Air connection: | Pa* | l/s | m³/h | Total cooling capacity (W)** | Sound level (dB(A)) |
| 600 | Ø 125 | 75 | 20 | 72 | 493 | 26 |
| 600 | Ø 125 | 75 | 25 | 90 | 564 | 28 |
| 600 | Ø 125 | 75 | 30 | 108 | 631 | 30 |
| 600 | Ø 160 | 75 | 25 | 90 | 566 | 27 |
| 600 | Ø 160 | 75 | 35 | 126 | 697 | 30 |
| 600 | Ø 160 | 75 | 45 | 162 | 809 | 33 |
| 1200 | Ø 125 | 75 | 25 | 90 | 882 | 26 |
| 1200 | Ø 125 | 75 | 35 | 126 | 1077 | 28 |
| 1200 | Ø 125 | 75 | 45 | 162 | 1218 | 30 |
| 1200 | Ø 160 | 75 | 30 | 108 | 900 | 23 |
| 1200 | Ø 160 | 75 | 60 | 216 | 1375 | 28 |
| 1200 | Ø 160 | 75 | 80 | 288 | 1591 | 34 |
| 1800 | Ø 200 | 75 | 60 | 216 | 1590 | 30 |
| 1800 | Ø 200 | 75 | 80 | 288 | 1890 | 33 |
| 1800 | Ø 200 | 75 | 100 | 360 | 2135 | 35 |
| * Total pressure duct (Pa) ** Air: ΔTl=7K / Water: ΔTmk=8.5K, twater=14/17°C | ||||||
