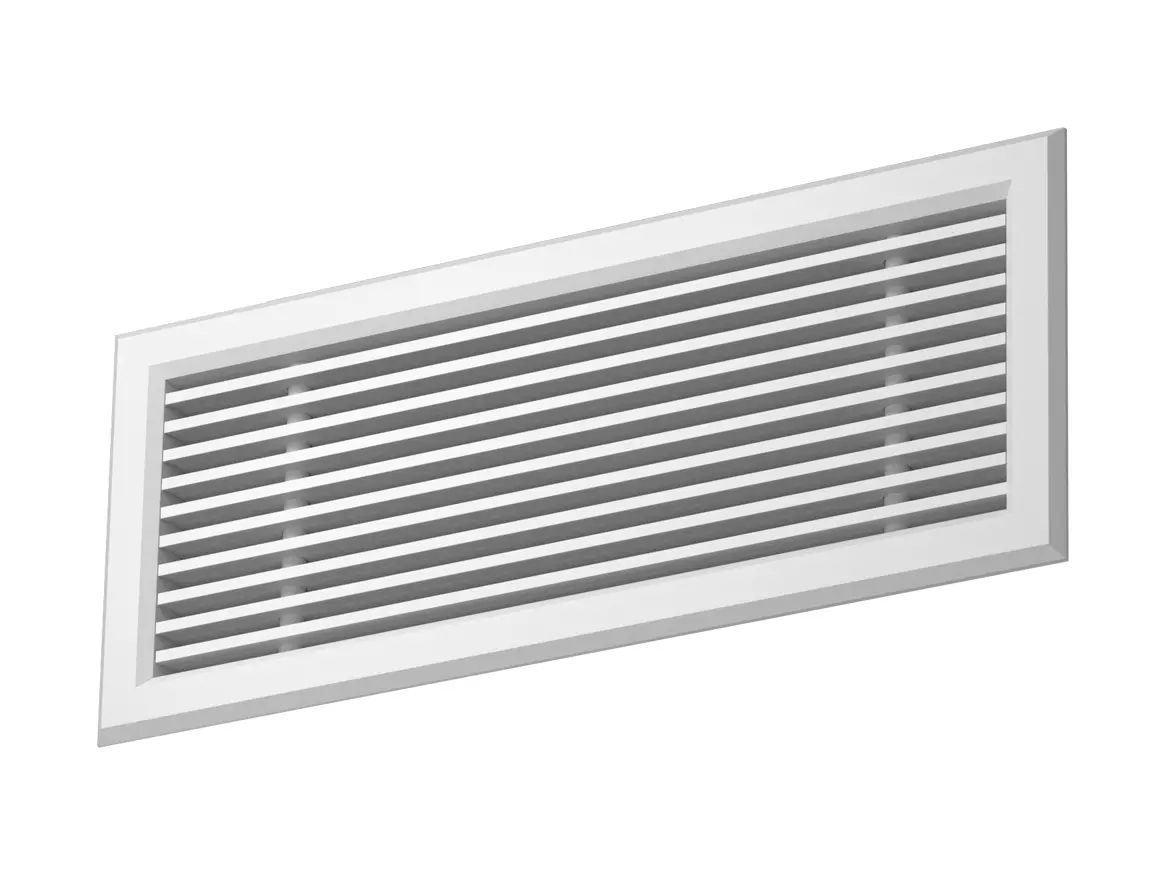

Product view

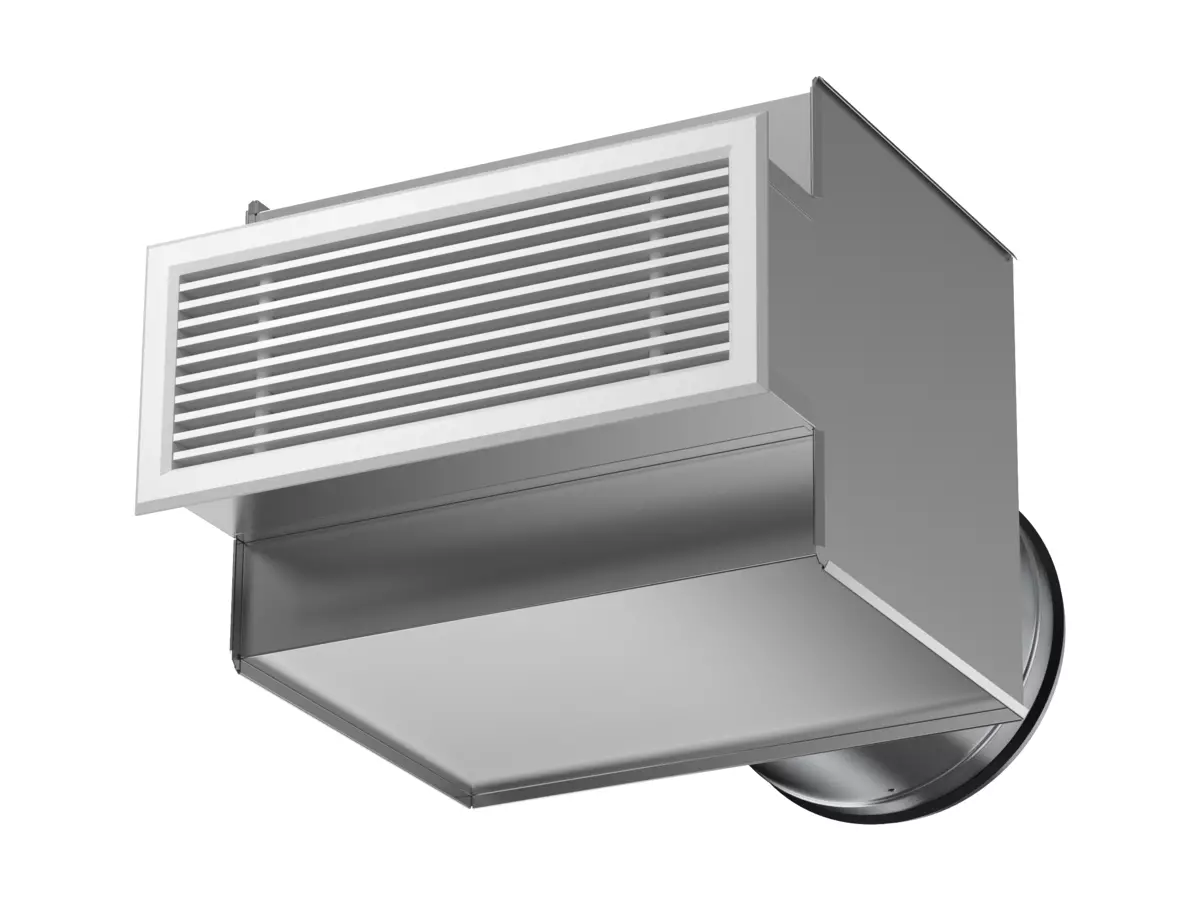

Product view with commissioning box TRG - Connection on rear side

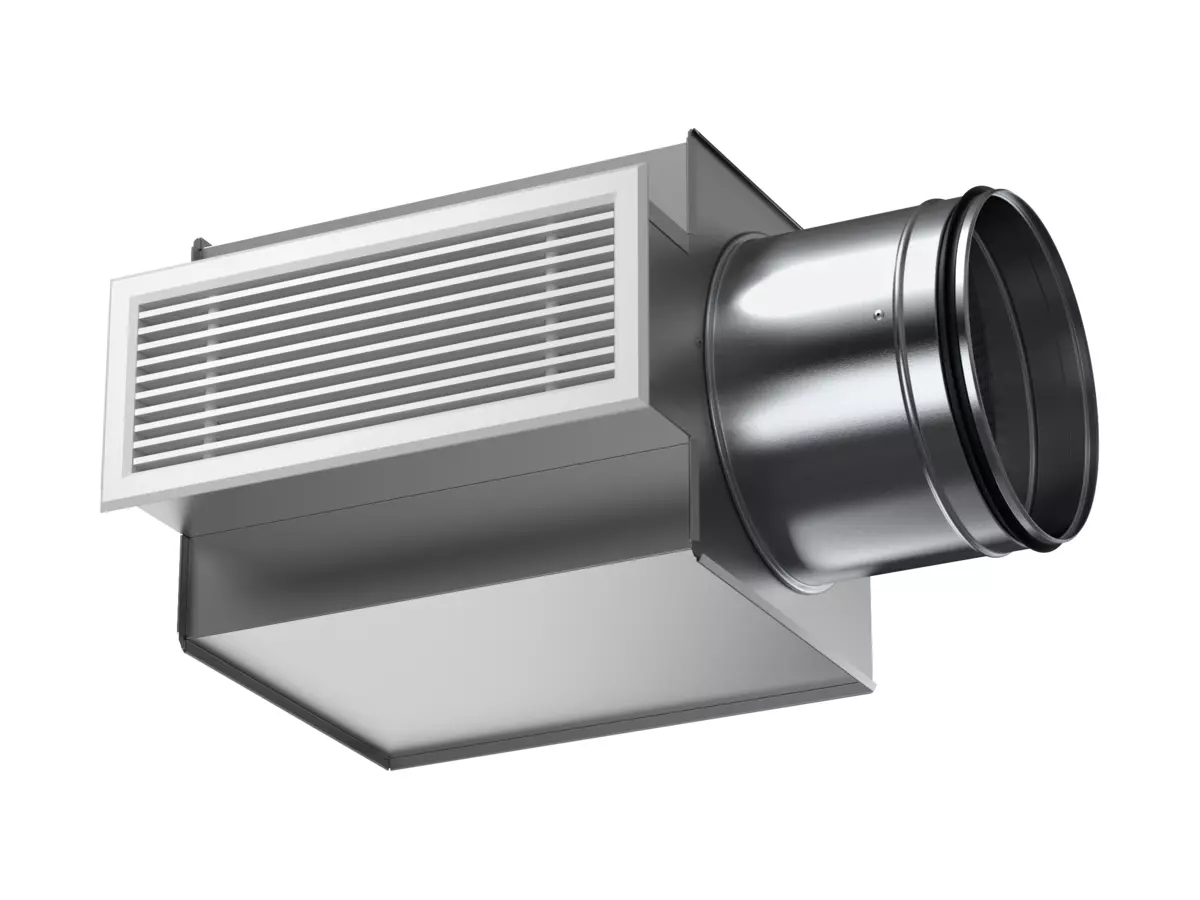

Product view with commissioning box TRG - Connection on short side
Product in context

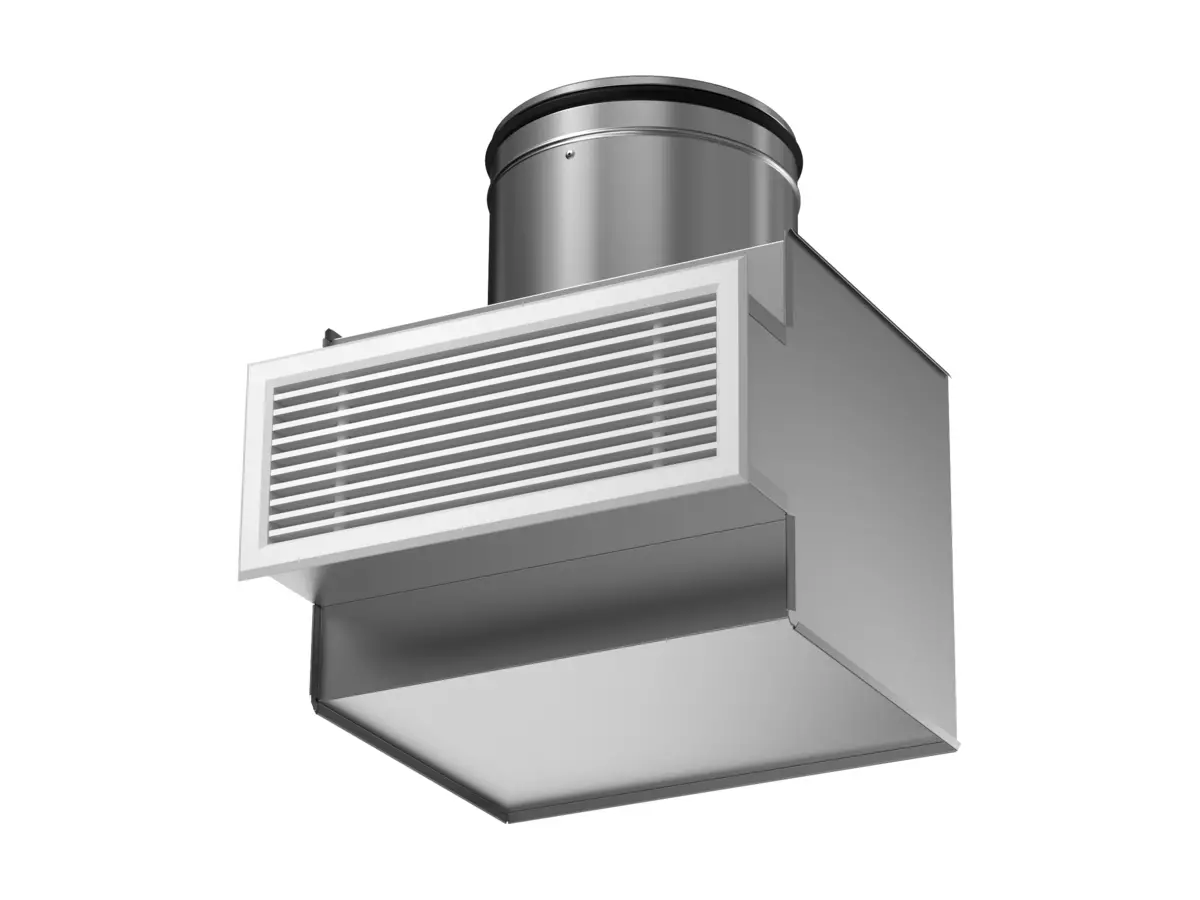

Product view with commissioning box TRG - Connection on long side
| LUFTMÆNGDE – LYDTRYK RUM (Lp10A) *) | ||||||
| ALG Størrelse | 25 dB(A) | 30 dB(A) | 35 dB(A) | |||
| l/s | m3/h | l/s | m3/h | l/s | m3/h | |
| 200x100 | 27 | 97 | 40 | 144 | 53 | 191 |
| 300x100 | 42 | 151 | 49 | 176 | 85 | 306 |
| 400x100 | 44 | 158 | 55 | 198 | 95 | 342 |
| 500x100 | 68 | 245 | 78 | 281 | 140 | 504 |
| 300x150 | 61 | 220 | 70 | 252 | 135 | 486 |
| 400x150 | 98 | 353 | 125 | 450 | 170 | 612 |
| 500x150 | 96 | 346 | 120 | 432 | 175 | 630 |
| 400x200 | 90 | 324 | 115 | 414 | 150 | 540 |
| 500x200 | 150 | 540 | 180 | 648 | 340 | 1224 |
| 600x200 | 160 | 576 | 240 | 864 | 370 | 1332 |
| Tabellen angiver tilluft for ALG + TRG ved totaltrykfald 50 Pa. *) Lp10A = Lydtryk inkl. A-filter med 4 dB rumdæmpning og 10 m² rumabsorptionsareal. | ||||||
